165FT Outdoor String Light Hanging Kit with Stainless Steel Guide Wire
Create a secure, professional-looking outdoor lighting display with the YingYa BIS Outdoor String Light Hanging Kit. This complete suspension kit includes a 165-foot, black vinyl-coated 304 stainless steel guide wire and the essential hardware needed to hang string lights across patios, gardens, pergolas, backyards, cafés, event spaces, and other indoor or outdoor areas.
The durable guide wire supports your string lights, reduces sagging, and helps keep them stable in windy conditions. Its black coating provides added protection while blending discreetly with dark string-light cords and outdoor surroundings.

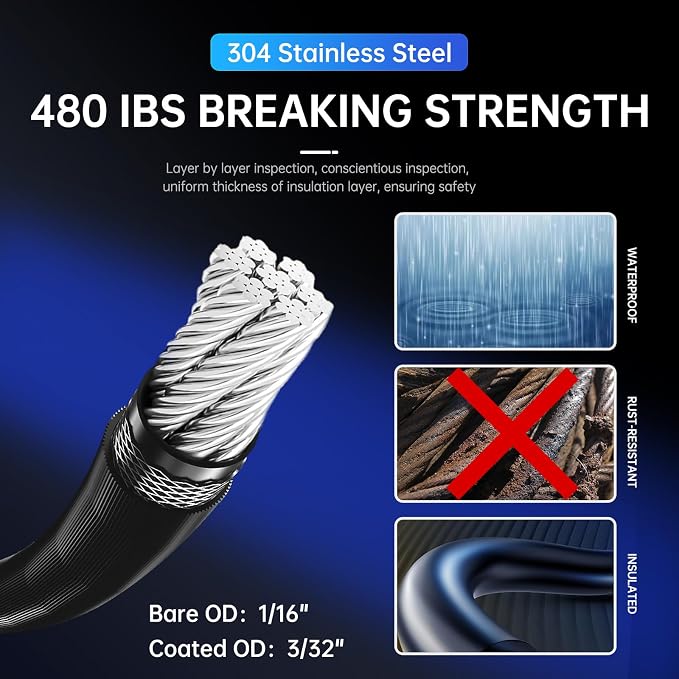

Durable 304 Stainless Steel Cable
The 7×7 wire-rope construction combines strength with the flexibility needed for easier routing and tensioning.
- Cable length: 165 feet
- Cable material: 304 stainless steel
- Construction: 7×7 wire rope
- Bare cable diameter: 1/16 inch
- Coated cable diameter: 3/32 inch
- Coating: Black vinyl
- Breaking strength: Up to 480 lb
Breaking strength is not the same as the recommended working-load limit. Select mounting points and installation hardware appropriate for your application.
M5 Stainless Steeel Pad Eye
-Punch holes where the Stainless Steel Pad Eye are to be installed .
-Use a cross screws to fix the Stainless Steel Pad Eye on the two ends of the wall or plank to be connected by wire ropes .
M3 Wire Rope Thimble +Crimping Loop +M3 Wire Rope Clamp
M3 Wire Rope Clamp-Use a wrench to tighten the double clamp to more secure the wire rope.
M3 Wire Rope Thimble-Thimbles are used to protect the eyes of cable and rope slings from abrasion, by providing a solid steel barrier between the fragile cable strands and the other fitting used in the connection.
M2.5 Aluminum Crimping Loop-Usage method:Lock both ends of the guide wire by vise, pliers, compression tools.Economical solution for fixing and transporting general purpose cable
M5 Stainless Steel Carabiner Clip Spring-Snap Hook
M5 Snap Hook-Connects the wire rope thimble to the eye of the pad with a snap hook to form a fixed rope.
M5 Stainless Steel Turnbuckle Wire Tensioner
Materail:304Stainless Steel
Style:Eye to Eye
Installation:Deep Screw Thread
Adjustable range : 112mm-168mm/4.8inch-7.2inch
M5 Turnbuckle Tesnioner Wire
The M5 turnbuckle included in the wire rope kit allows for easy tension adjustment and straining of the wire rope, providing a secure and stable setup. Whether you're using it for string light hanging or creating a curtain cable wire system, our wire tensioner strainer kit simplifies the installation process.
M5 Stainless Steel Screw Eye
Use the M5 screw eye to secure a wire rope that you can remove at any time, making it easier and more flexible to use.
Outdoor String Lights Hanging Kit is the perfect solution for easily suspending your globe string lights and creating a beautiful ambiance in your outdoor space.

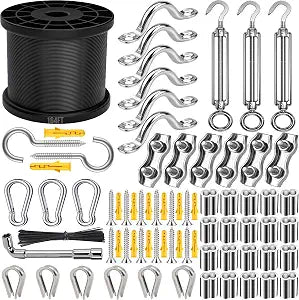

Complete String Light Suspension Kit
The package includes the guide wire, mounting hardware, tensioning components, fastening supplies, and basic installation tools:
- 1 × 165FT black vinyl-coated steel cable
- 4 × M5 stainless steel turnbuckles
- 8 × M3 wire-rope thimbles
- 20 × aluminum crimping sleeves
- 4 × M5 screw eyes
- 4 × M5 stainless steel carabiner clips
- 8 × M3 duplex two-post cable clamps
- 50 × zip ties
- 20 × plastic wall anchors
- 16 × screws
- 1 × wrench
- 1 × screwdriver
- 1 × measuring tape
Adjustable Wire Tension
The included M5 turnbuckles make it easier to tighten the cable and create a straight, stable support line. Adjustable tension helps reduce sagging while allowing the installation to be fine-tuned after the cable is mounted.
Secure Cable Connections
Wire-rope thimbles help protect cable loops from wear and abrasion. The aluminum crimping sleeves and duplex cable clamps create more secure cable ends, while the stainless steel carabiner clips provide convenient connections between the guide wire and mounting points.
Suitable for Wood and Masonry Surfaces
The included screw eyes, screws, and plastic anchors allow the cable to be installed on suitable wood, timber, brick, or concrete surfaces. Always confirm that the mounting surface and fasteners can safely support the intended load before installation.
Multiple Indoor and Outdoor Uses
This versatile guide-wire kit can be used for:
- Patio and backyard string lights
- Pergola and gazebo lighting
- Café and restaurant lighting
- Wedding and event decorations
- Garden and greenhouse plant support
- Curtain-wire systems
- Retail displays
- Lightweight DIY cable projects

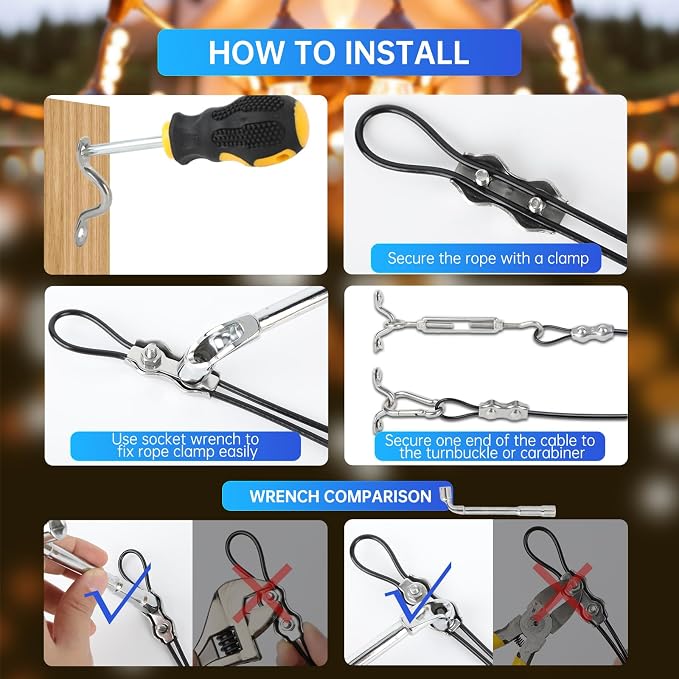

Easy to Install and Reuse

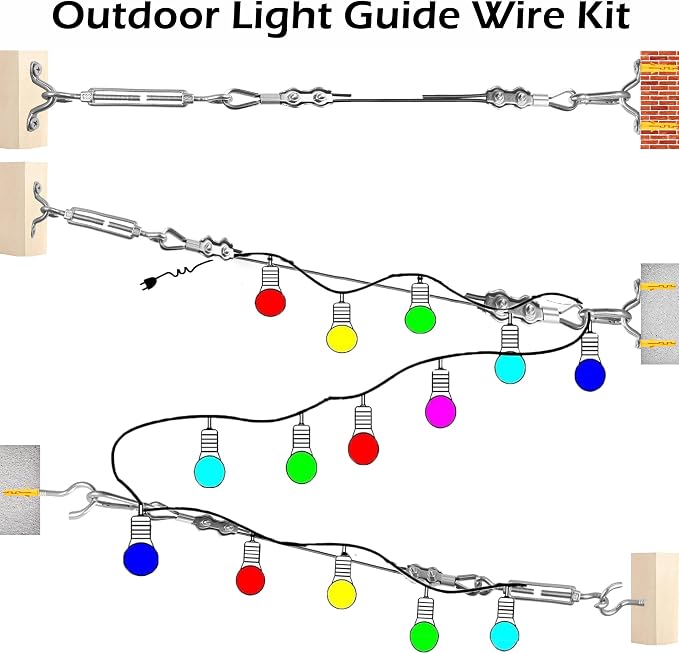

Measure the installation area, secure the mounting points, assemble the cable loops, connect the guide wire, and use the turnbuckles to adjust the tension. The removable clips and adjustable hardware make the system easier to disassemble, reposition, or reuse for future projects.
Installation Reminder
Do not overtighten the cable. Excessive tension can damage mounting surfaces, fasteners, or the wire rope. This product is intended as a support guide for string lights and similar lightweight applications. It is not designed for climbing, lifting, fall protection, safety railings, or supporting people.
Package includes installation hardware only. String lights are not included.
