MUNICIPAL • ROADWAY • INFRASTRUCTURE SOLAR LIGHTING
12,000W Commercial Solar Street Light
Up to 270,000 Lumens • LiFePO4 Battery • IP66 •
140° Wide Beam • Remote Control • 8-10 m Mounting Height
A high-output separated-panel solar street lighting system designed
for roadways, municipal streets, public infrastructure,
government facilities, commercial properties and large-area projects.
The separate solar-panel and luminaire design simplifies component access
and allows the solar panel to be positioned independently for better
solar exposure while the light fixture is aimed for roadway illumination.
270,000 LM Listed Output
42Ah LiFePO4
IP66
140° Beam
Auto Dusk-to-Dawn
Remote Control
PROJECT-GRADE APPLICATION
Designed for larger roadway and infrastructure lighting applications
where long overnight operation, separate solar-panel placement,
weather resistance and elevated pole mounting are required.
270,000 LM
Listed output
42Ah / 12.8V
LiFePO4 battery
140°
Wide beam
IP66
Outdoor protection
8-10 m
Mounting height
12-15 Hr
Listed nightly runtime
Built for Roadway & Municipal Lighting Layouts

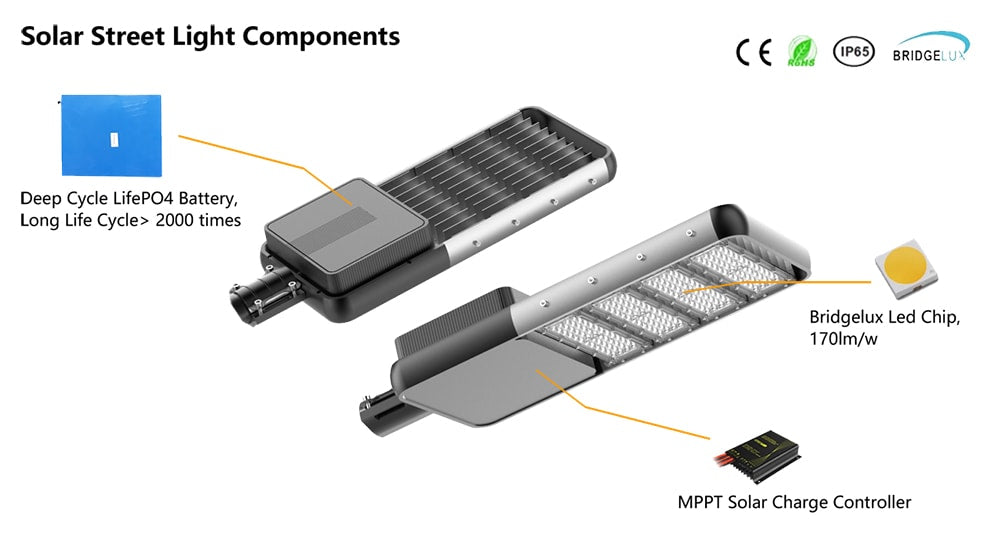

This system combines an aluminum-body LED street-light fixture,
external solar panel, LiFePO4 battery system and intelligent
lighting controls for long-duration outdoor operation.
270,000 LM
High-output listed lumen rating

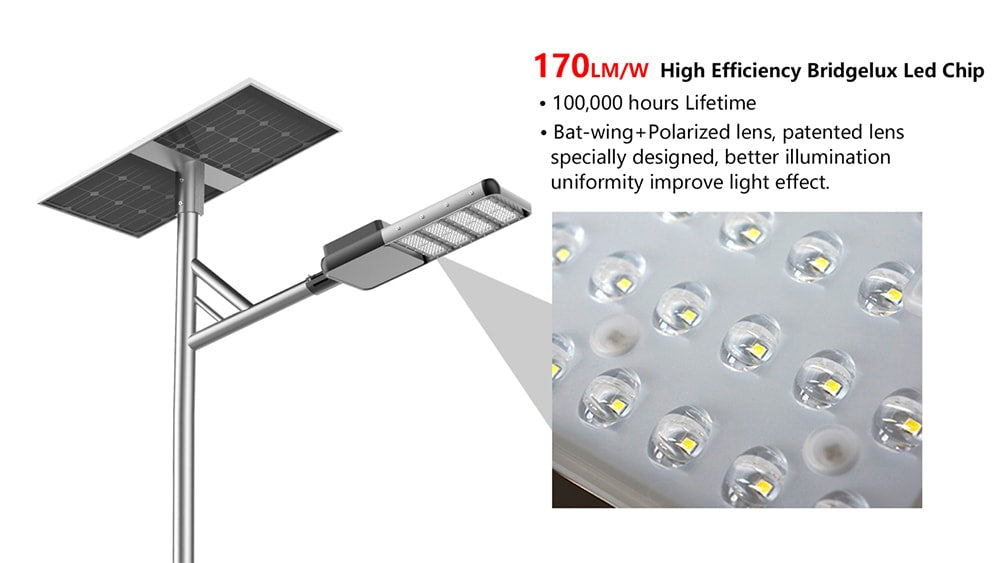

192 LEDs
LED chip configuration
140°
Wide-area beam distribution
IP66
Weather-resistant outdoor construction

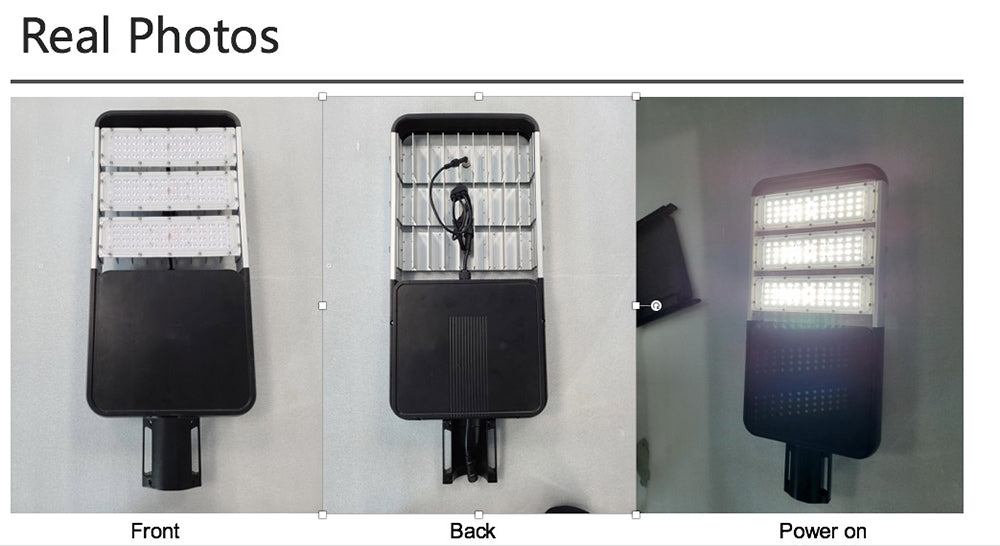

Aluminum Alloy Fixture
- High-end aluminum alloy lamp construction
- Designed for permanent outdoor installations
- Suitable for elevated pole mounting
- IP66 outdoor protection listed
- Commercial roadway-style form factor

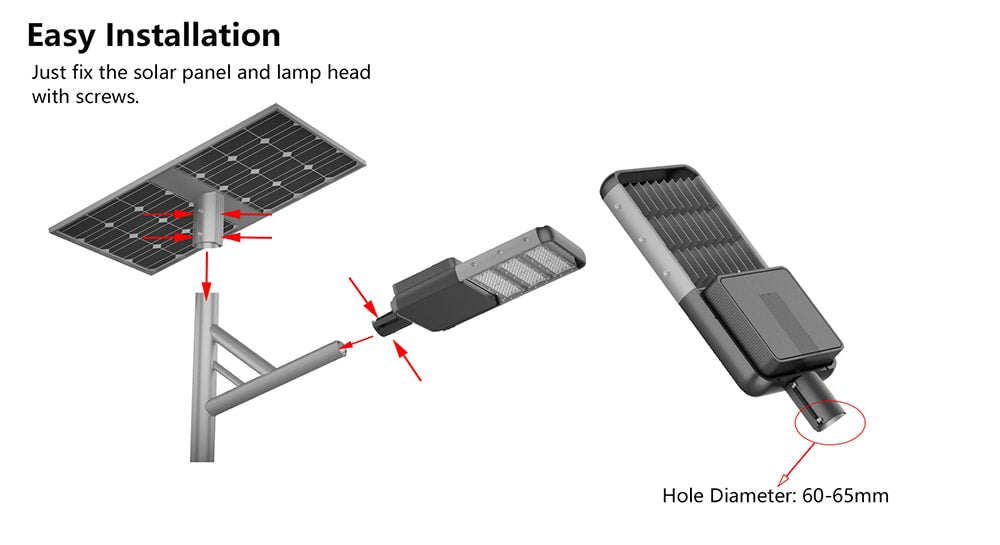

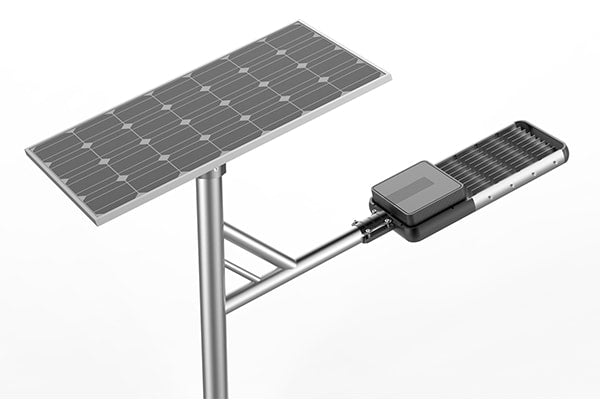

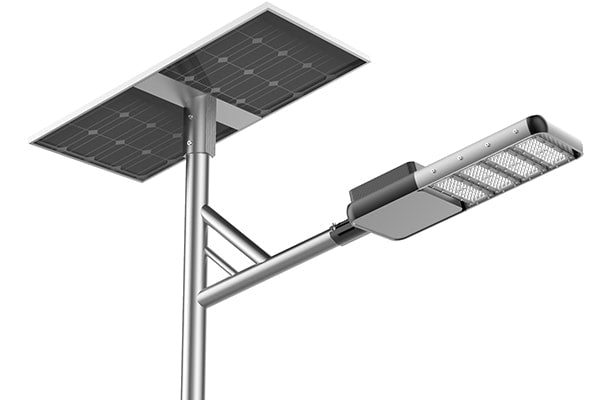

Separate Solar Panel Design
- Solar panel separated from lamp body
- Allows independent solar-panel positioning
- Improves component accessibility
- Useful for roadway and infrastructure layouts
- Supports easier maintenance access
Wide 140° Beam Distribution
A listed 140-degree beam angle helps distribute light
over broader roadway and open-area applications.
- Wide-area roadway illumination
- Suitable for streets and parking applications
- Fixture aiming adjustment available
- Helps reduce overly concentrated lighting patterns
Adjustable Fixture Angle
The lamp body is listed as adjustable approximately
10° clockwise and 10° counterclockwise
to help fine-tune lighting distribution after installation.
42Ah LiFePO4 Battery
- 12.8V battery system
- 42Ah listed capacity
- LiFePO4 battery chemistry
- Designed for long overnight operation
- Integrated protection circuitry described
Long Overnight Operation
- Approx. 12-15 hours listed working time
- 5-6 hour listed charging time
- Supplier lists 5+ rainy/cloudy days capability
- Automatic day/night lighting control
- Programmed dimming helps manage stored energy

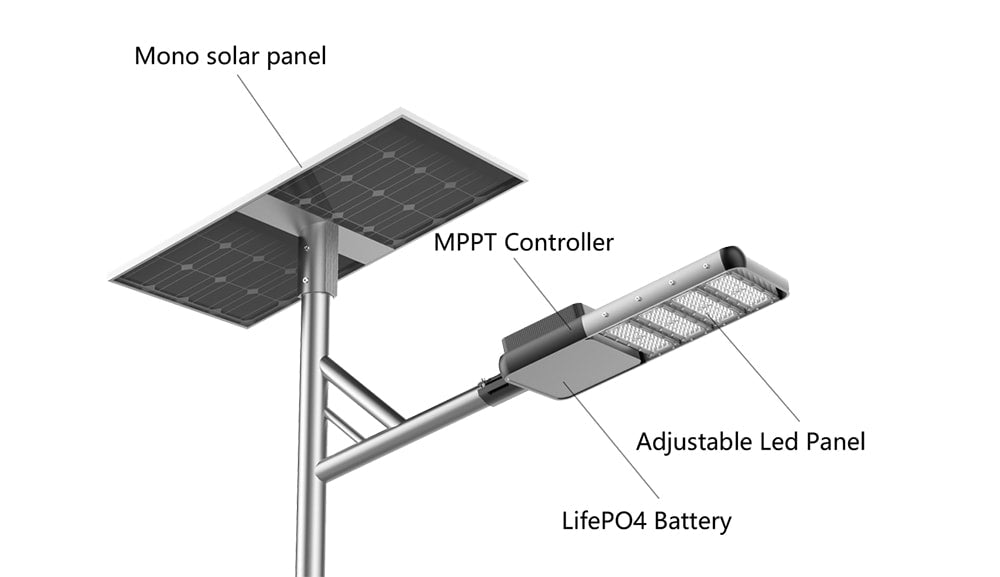

High-Efficiency Monocrystalline Solar Panel
The product uses a separate monocrystalline solar panel to recharge
the battery during daylight hours. The independent panel design allows
installers to position the panel for solar exposure separately from
the fixture's lighting direction.
Automatic Dusk-to-Dawn Control
- Photosensitive automatic control
- Charges during daylight hours
- Automatically illuminates at night
- Programmable brightness schedule
- Remote-control functionality
Programmed Nighttime Dimming
The supplied operating profile is:
- First 3 hours: 100% brightness
- Next 2 hours: 80% brightness
- Following 7 hours: 25% brightness
This stepped-lighting profile is designed to balance
illumination needs with stored solar energy.

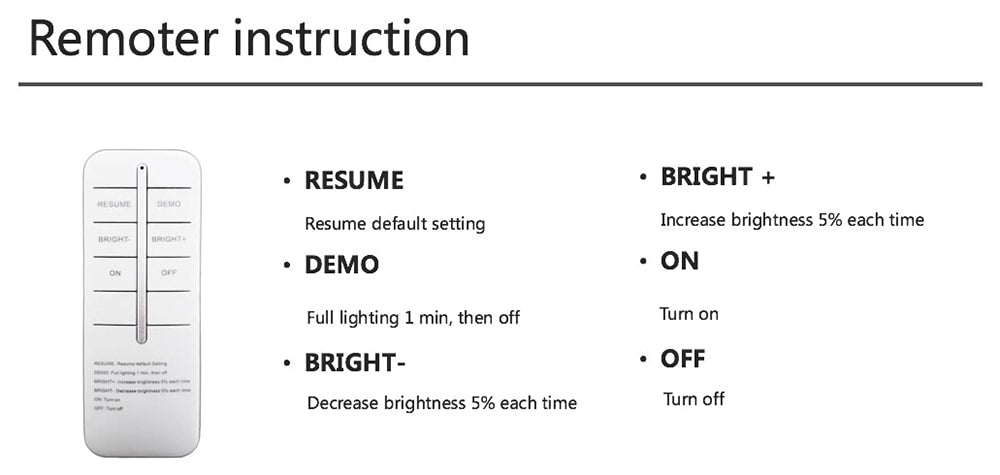

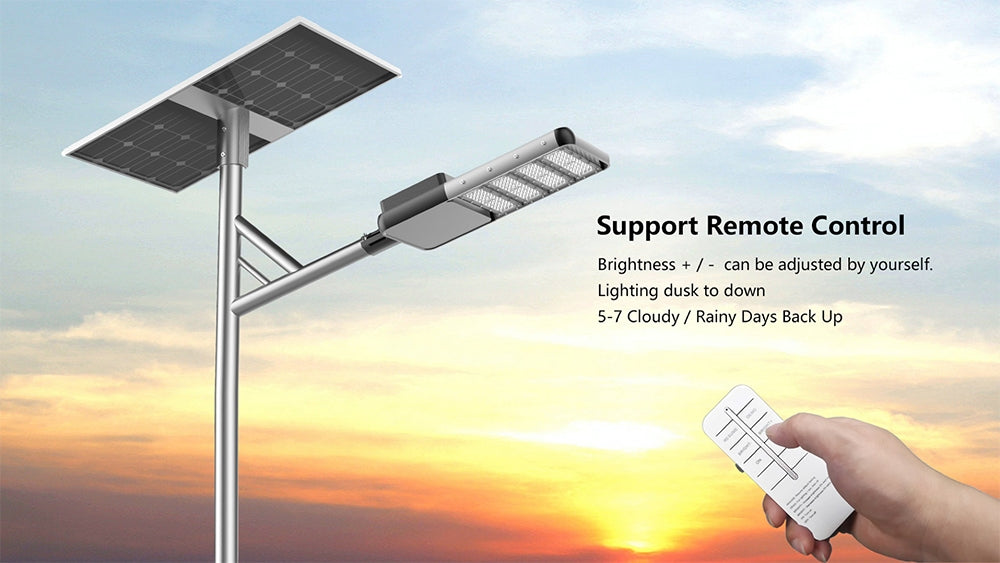

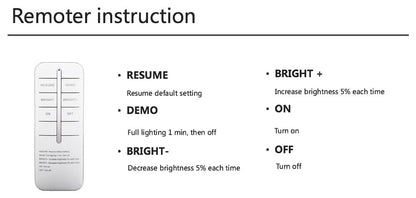

Remote-Control Operation
The supplied specifications list wireless remote-control operation
at distances of up to approximately 30 meters
under suitable conditions.
Recommended Mounting Height
The supplied specification lists a recommended mounting height of
approximately 8-10 meters, or roughly
26-33 feet.
Actual pole height and spacing should be selected based on roadway width,
target illumination, fixture spacing, local codes and photometric requirements.
Multiple Color Temperatures
Availability may depend on the ordered configuration.
IP66 Outdoor Protection
The fixture is listed with an IP66 weather-protection rating
and intelligent overvoltage and overcurrent protection circuitry
for outdoor roadway and infrastructure installations.

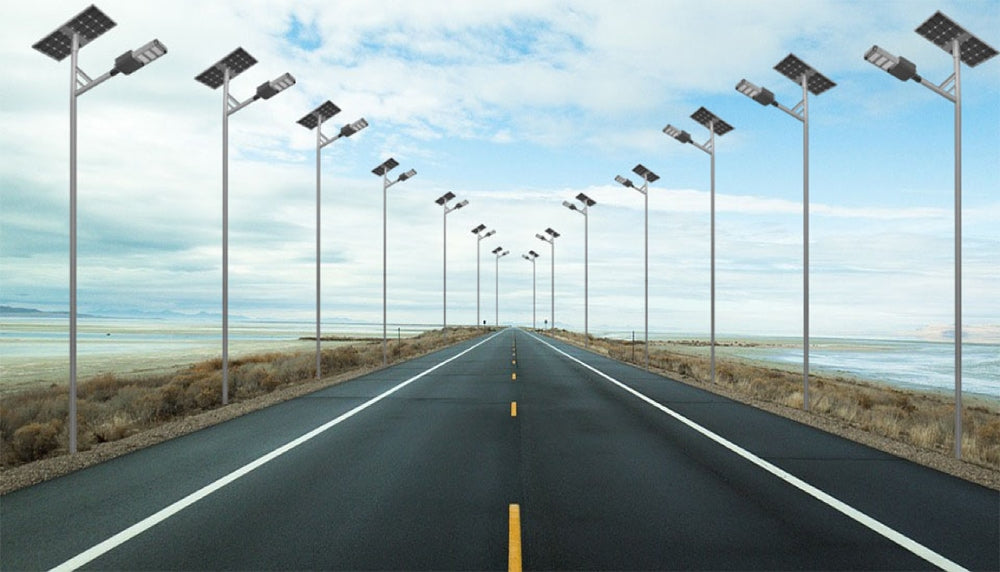

Designed for Large-Scale Outdoor Lighting Projects
Municipal Streets
Government Facilities
Public Roads
Roadway Projects
Parking Lots
Industrial Sites
Military & Public Facilities
Campuses
HOA Roadways
Remote Roads
Commercial Properties
Infrastructure Projects
Technical Specifications
| Product Type |
Commercial / Municipal Solar Street Light |
| Model |
SSL-80W |
| Series Designation |
12,000W |
| Listed Lumen Output |
Up to 270,000 Lumens |
| LED Configuration |
192 LED Chips |
| Battery |
LiFePO4, 42Ah, 12.8V |
| Solar Panel |
Monocrystalline, Separate-Panel Design |
| Charge Time |
Approx. 5-6 Hours |
| Working Time |
Approx. 12-15 Hours |
| Cloudy / Rainy Operation |
Supplier Lists 5+ Days |
| Control Modes |
Photosensitive + Dimming + Remote Control |
| Night Program |
3 Hr 100% + 2 Hr 80% + 7 Hr 25% |
| Beam Angle |
Approx. 140° |
| Fixture Adjustment |
Approx. ±10° |
| Color Temperature |
3000K / 4000K / 5000K / 6000K |
| Weather Protection |
IP66 |
| Fixture Material |
Aluminum + PC |
| Recommended Mounting Height |
8-10 m / Approx. 26-33 ft |
| Fixture Size |
755 × 280 × 100 mm |
| Lamp Package |
790 × 330 × 150 mm / Approx. 9 kg |
| Panel Package |
1100 × 750 × 80 mm / Approx. 8 kg |
| Listed Warranty |
3 Years |
Important specification note:
“12,000W” is used here as the product/series designation.
For engineering, procurement or bid documentation, use the verified
electrical specifications rather than treating the 12,000W designation
as actual electrical consumption.
Solar panel specification:
The supplied source contains both an 80W reference and an 18V 100W reference.
Confirm the current production panel supplied with your order before using
panel wattage in government bids, engineering drawings or procurement documents.
Photometric planning:
Actual roadway performance depends on pole height, spacing,
road width, fixture orientation, surface reflectance and required
illumination levels. Projects with defined lighting standards should
be evaluated using the appropriate photometric / IES data.
Planning a Municipal, Roadway or Government Lighting Project?
Send us your roadway dimensions, pole locations, target mounting height,
site plan and project requirements. Our team can help determine fixture
quantities, placement and suitable mounting configurations.
For public-sector or commercial projects, include any applicable
bid specifications, required documentation and photometric requirements.
Commercial Solar Street Light FAQs
Is this suitable for public roadways?
The product is designed for roadway-style and large-area lighting applications.
Final suitability depends on the roadway geometry, pole spacing,
required illumination levels and applicable project specifications.
Can this be used for municipal or government projects?
It can be specified for municipal, public-sector and infrastructure projects
when its technical specifications meet the individual project's requirements.
Any required certifications or procurement standards should be verified separately.
What is the listed lumen output?
The supplied product specification lists output up to approximately
270,000 lumens.
What battery does it use?
The listed battery is a 12.8V 42Ah LiFePO4 battery.
How long does the light operate at night?
The supplied specification lists approximately 12-15 hours
of working time depending on charge level and operating conditions.
What is the recommended mounting height?
The listed mounting height is approximately 8-10 meters,
or about 26-33 feet.
Does it operate automatically?
Yes. The system includes photosensitive light control
for automatic daytime charging and nighttime operation.
Does it include remote control?
Yes. Remote-control operation is included in the supplied specifications,
with a listed range of up to approximately 30 meters under suitable conditions.
What beam angle does it use?
The supplied specification lists a wide 140-degree beam angle.
Is the fixture angle adjustable?
Yes. The source lists approximately 10 degrees of adjustment
in either direction to help fine-tune lighting distribution.
What color temperatures are available?
The supplied specification lists 3000K, 4000K, 5000K and 6000K options.
Confirm current availability before ordering.
Is the light weather resistant?
The product is listed with IP66 outdoor protection.
