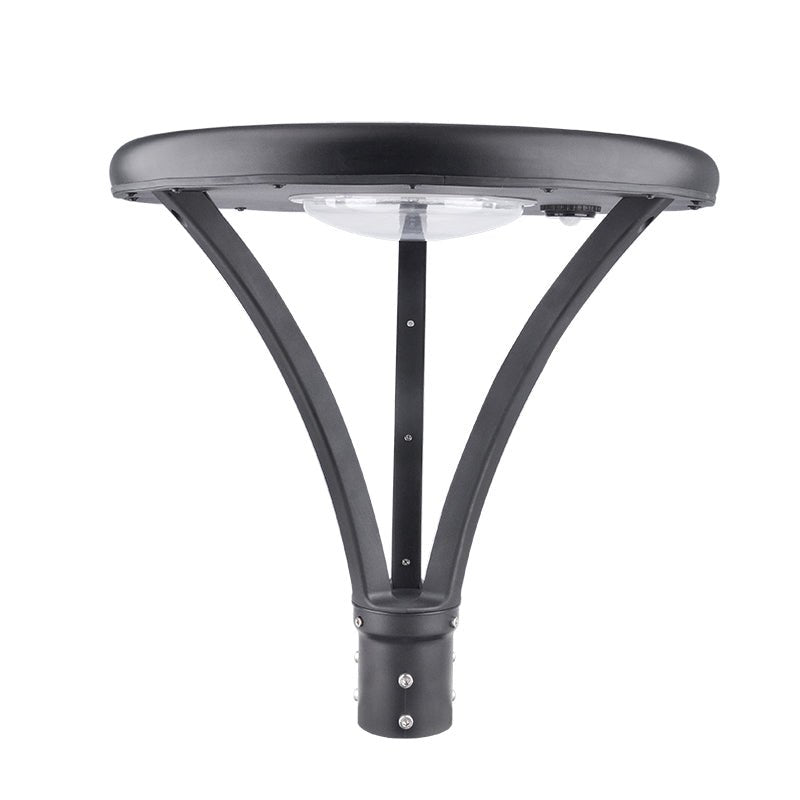

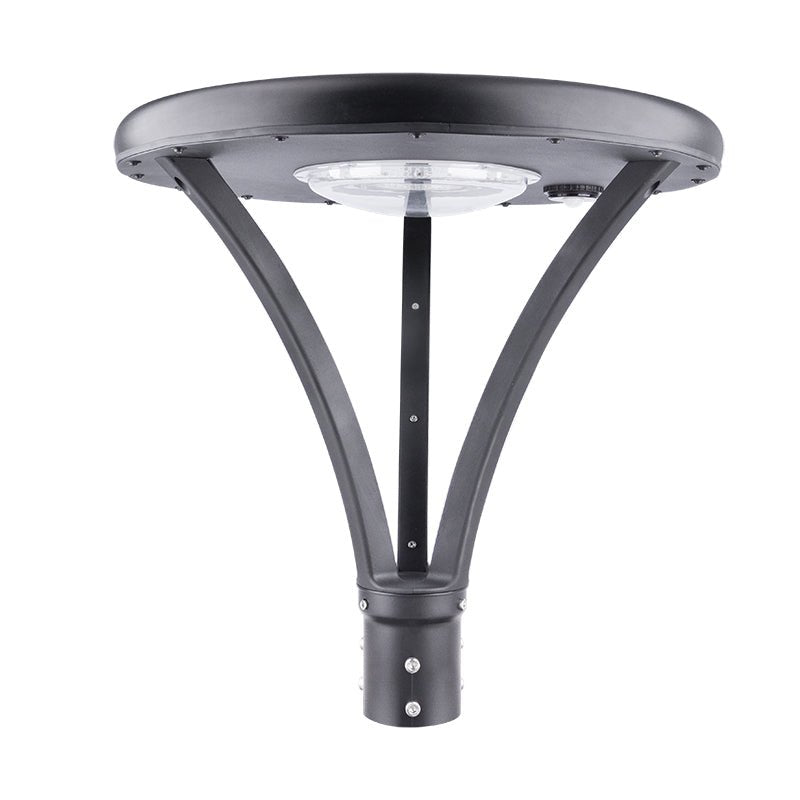

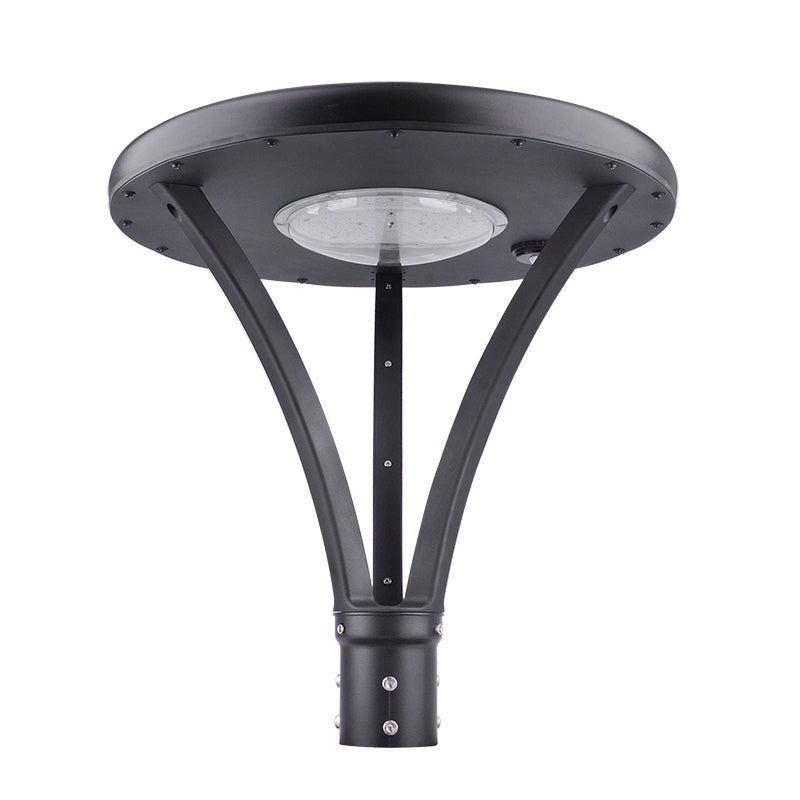

12000W Solar Lamp Post Cap
240000-Lumen Aluminum Solar Post Top Light with IP65 Protection, 120° Wide Beam & Automatic Outdoor Operation
Upgrade pathways, entrances, parks, communities, residential properties and commercial landscapes with a decorative 12000W Solar Lamp Post Cap designed to deliver wide-area illumination without requiring conventional electrical wiring at the light location.
The fixture combines a die-cast aluminum housing, integrated solar charging, a wide 120-degree beam angle, IP65 outdoor protection and a listed output of 2400 lumens.
12000W Series 2400 Lumens Aluminum Housing IP65 120° Beam Solar Powered 50,000 Hr Listed Life
PREMIUM SOLAR POST TOP Decorative post-top styling combined with solar charging, wide-area LED illumination, aluminum construction and weather-resistant outdoor performance.
2400 lm Listed light output
27W Solar panel max power
3–5 m Listed mounting height
10–15 m Listed spacing
10–12+ Hrs Listed nighttime runtime
IP65 Outdoor protection
!
12000W Product Series — Technical LED Rating Listed at 25W
The product is marketed on this listing as the 12000W Solar Lamp Post Cap. The supplied technical specifications, however, list the LED fixture power at 25W, the solar panel at 18V / 27W, and the light output at 240000 lumens. These technical values are retained here for accurate product comparison.

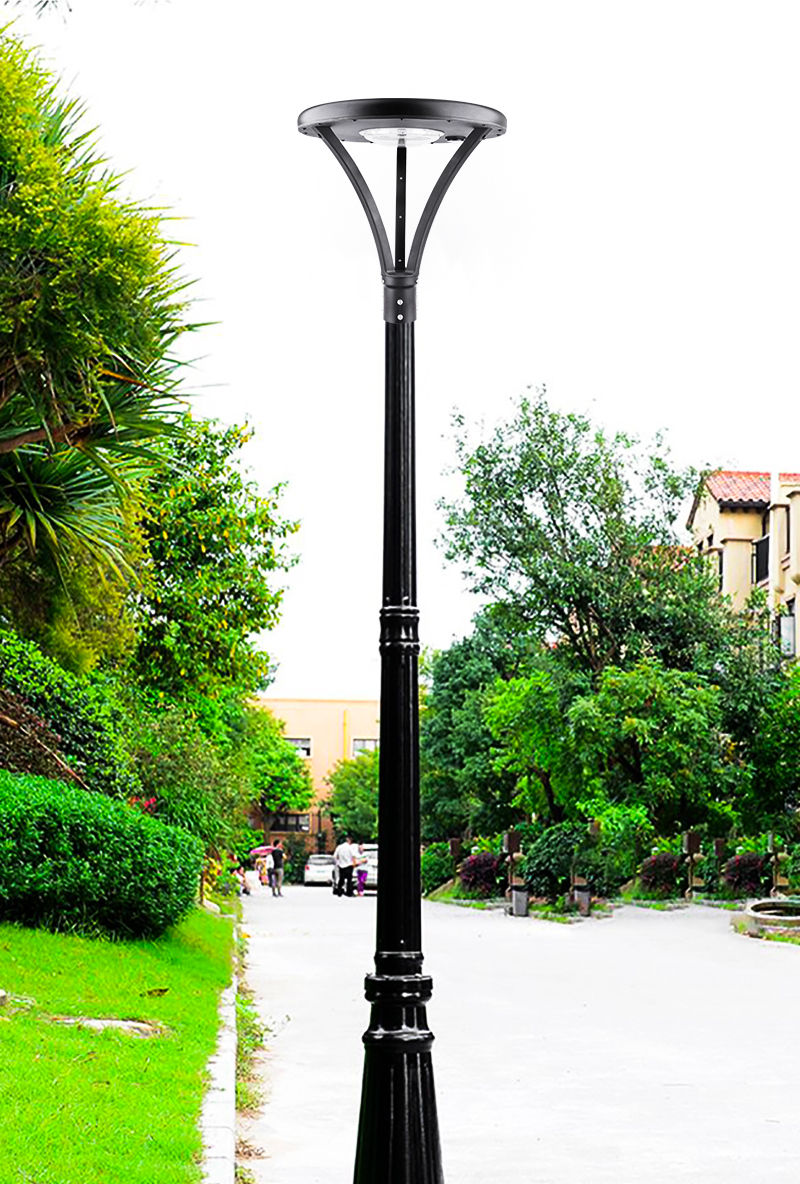

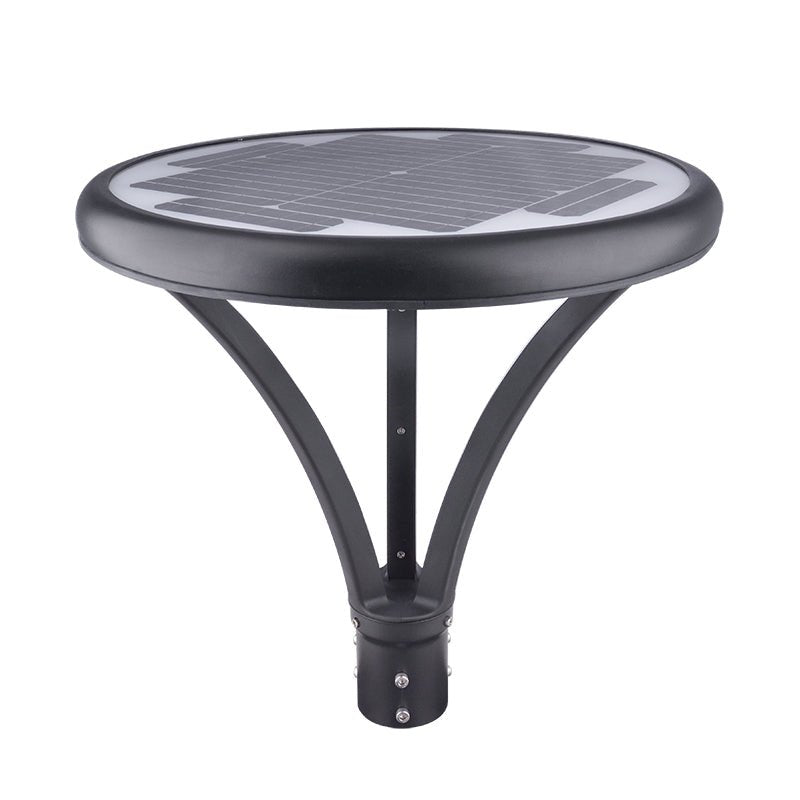

Classic Post-Top Design with Modern Solar Power
The decorative post-top profile is designed for locations where appearance matters as much as nighttime visibility. It works well for pathways, entrances, residential communities, parks, pedestrian areas and commercial landscaping.
Solar charging eliminates the need to connect the fixture directly to normal utility power at the installation point, helping simplify projects where trenching or electrical infrastructure would be difficult.
Die-Cast Aluminum Construction
The fixture uses an aluminum die-cast housing designed to provide structural support while helping manage heat generated by the LED system.
Aluminum Housing Durable die-cast exterior construction.
120° Beam Wide-area light distribution.
IP65 Protection for outdoor environments.
50,000 Hours Listed LED service-life rating.
Wide-Area Illumination
A listed 120-degree beam angle helps distribute light across pathways, pedestrian spaces and surrounding landscape areas.
Decorative Post-Top Appearance
Designed as a modern solar alternative to conventional decorative area and post-top lighting.
Outdoor Lighting Applications
Suitable for pathways, parks, entrances, gardens, communities and other outdoor areas where decorative lighting is preferred.

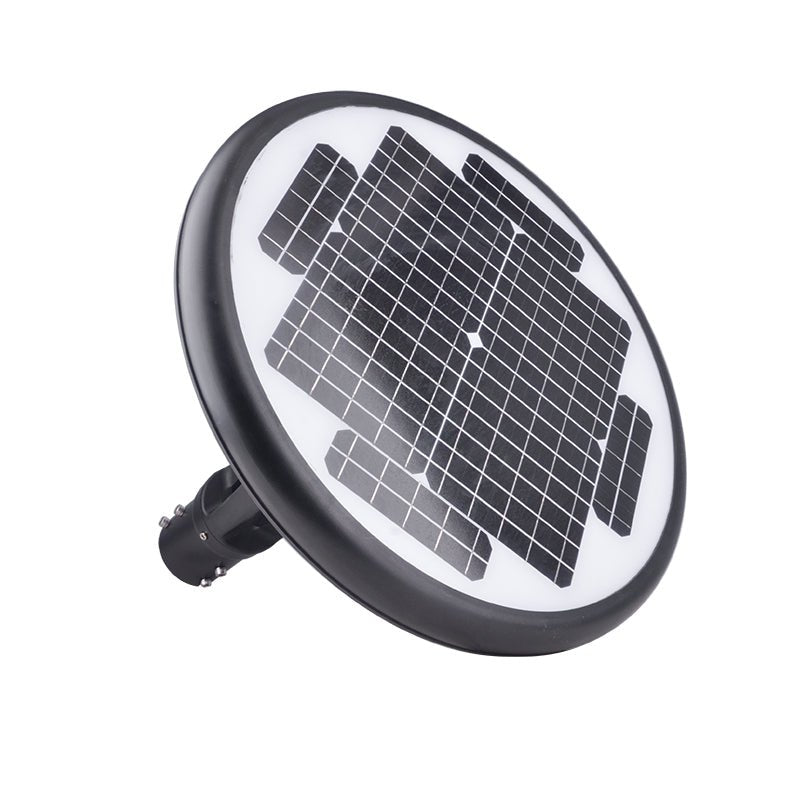

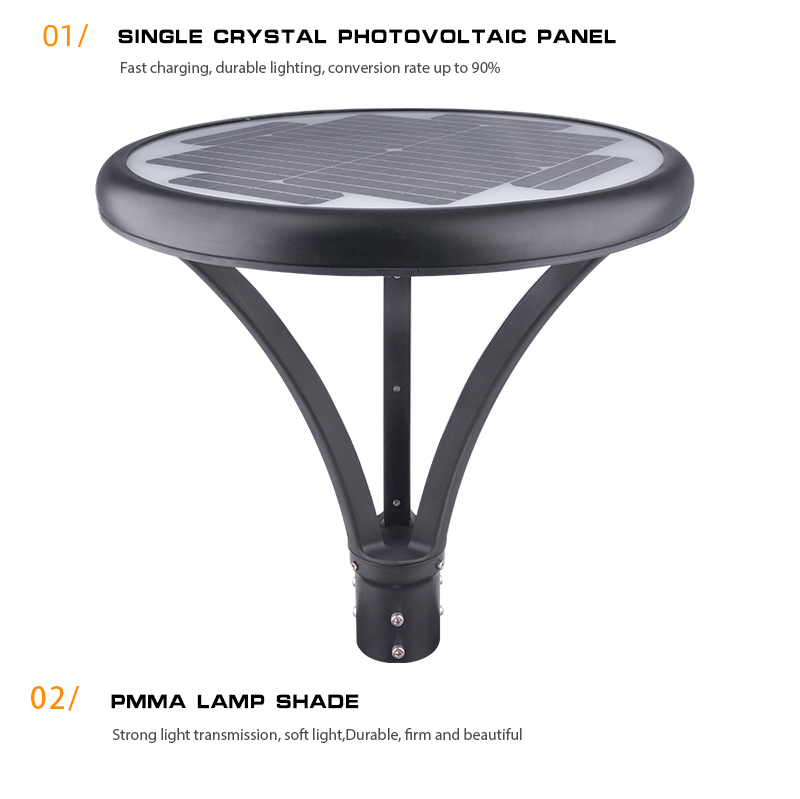

Solar Charging Performance
- 18V / 27W maximum solar-panel specification
- Approx. 6–7 hours listed charging time in strong sunlight
- 10–12+ hours listed nighttime discharge time
- No normal utility wiring required at the light fixture
- Best charging performance with direct sunlight
- Performance can vary with weather and seasonal sunlight

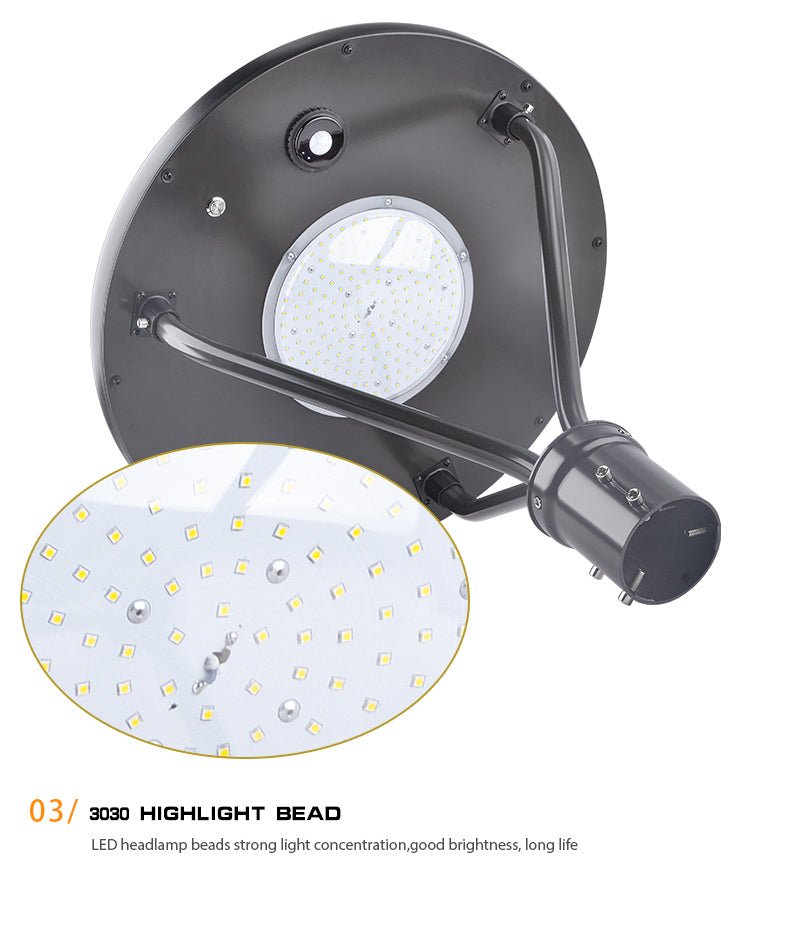

Battery & LED System
- Ternary lithium-ion battery listed as standard
- LiFePO4 battery listed as an optional configuration
- 2400-lumen listed LED output
- 120-degree beam angle
- Individual LED circuit design described by manufacturer
- 50,000-hour listed LED life
Designed to Replace Conventional Post-Top Area Lighting
The solar-powered design can be considered for locations where traditional wired post-top fixtures would otherwise require underground electrical work. The self-contained solar configuration can simplify new installations and retrofit projects where suitable sunlight is available.
Easy Post-Top Installation
Designed for post-top applications with a recommended mounting height of approximately 3–5 meters according to the supplied specifications.

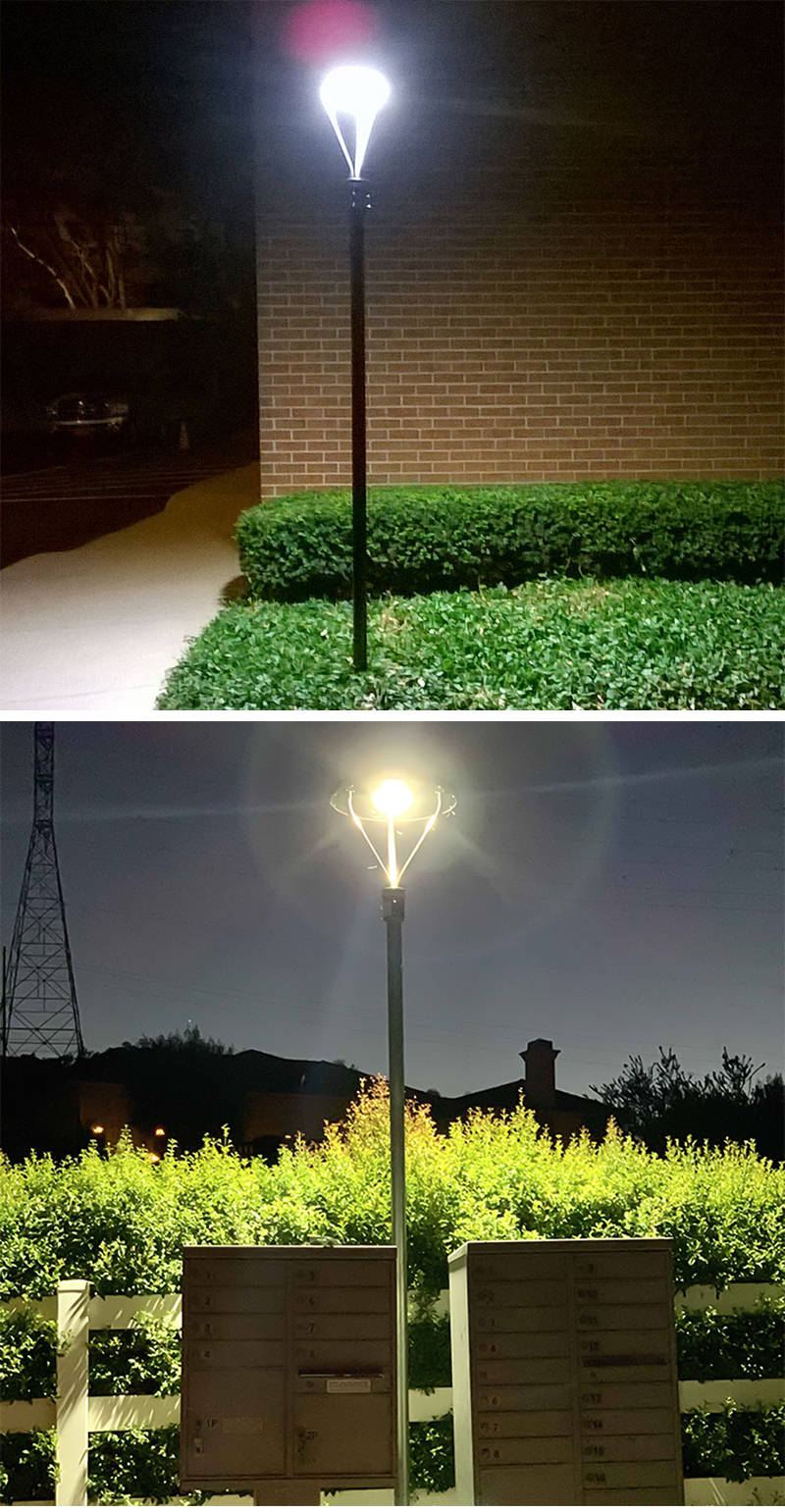

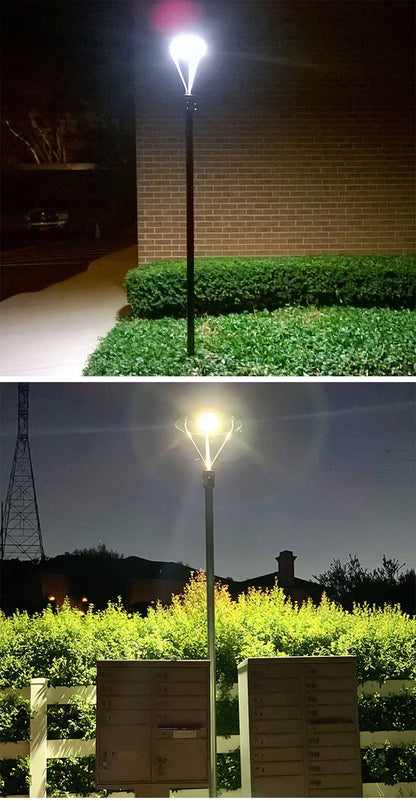

Pathways & Pedestrian Areas
A strong decorative lighting option for walking paths, parks, community areas and landscaped outdoor spaces.
Residential & Commercial Use
Use on suitable lamp posts in residential developments, communities, parks, hotels, entrances and commercial landscape projects.
Multiple Color Temperature Options
The supplied specifications list multiple LED color-temperature configurations, allowing the fixture appearance to be matched to different types of projects.
2700K Soft White 3000K Warm White 4100K Neutral White 5000K Daylight White 5700K Cool White
12000W Solar Lamp Post Cap Specifications
| Product Name |
12000W Solar Lamp Post Cap / Solar Lamp Post Top |
| Model |
BB-SLD-25W-AR-B2 |
| Rated LED Power |
25W |
| Solar Panel Max Power |
18V / 27W |
| Luminous Flux |
2400 Lumens |
| Beam Angle |
120° |
| Housing |
Die-Cast Aluminum |
| Recommended Mounting Height |
3–5 m / Approx. 9.8–16.4 ft |
| Listed Light Spacing |
10–15 m / Approx. 33–49 ft |
| Charge Time |
Approx. 6–7 Hours with Sufficient Strong Sunlight |
| Discharge / Working Time |
Approx. 10–12+ Hours |
| Battery |
Ternary Lithium-Ion; LiFePO4 Listed as Optional |
| Operating Temperature |
-40°C to +45°C |
| Available CCT |
2700K / 3000K / 4100K / 5000K / 5700K |
| Listed LED Life |
50,000 Hours |
| Weather Protection |
IP65 |
| Warranty |
3 / 5 Years Depending on Configuration |
| Compliance |
CE / RoHS Listed in Supplied Product Information |
Key Features
- Wide 120-degree beam angle
- Precision die-cast aluminum housing
- Integrated solar-powered operation
- 2400-lumen listed light output
- IP65 outdoor protection
- Multiple available color temperatures
- 50,000-hour listed LED service life
Why Choose a Solar Post Top?
- Helps reduce the need for underground electrical wiring
- Suitable for new and retrofit outdoor-lighting projects
- Decorative design for visible landscape areas
- Automatic solar charging during daylight
- Long nighttime operating window after sufficient charging
- Suitable for residential and commercial properties
- Powder-coated aluminum exterior construction
Recommended Applications
Walking Paths Parks Residential Communities HOAs Hotel Grounds Building Entrances Garden Paths Courtyards Commercial Landscapes Pedestrian Areas Private Properties Decorative Outdoor Lighting
SOLAR POST-TOP PROJECT HELP
Need Help Planning Your Solar Lamp Post Project?
For pathways, communities, parks, commercial properties and larger installations, send Outdoor Solar Outlet your project dimensions, pole height, ZIP code or site plan. Our team can help you think through fixture quantity, spacing and placement.
Property Dimensions
Pole Height
Site Photos
Desired Spacing
12000W Solar Lamp Post Cap FAQs
What is the light output?
The supplied technical specifications list the fixture at approximately 2400 lumens.
Is this actually a 12000W electrical fixture?
12000W is the product-series / marketing designation used for this listing. The supplied technical specification lists the actual LED fixture power at 25W with an 18V / 27W solar panel.
What material is the fixture made from?
The supplied product information describes a precision die-cast aluminum housing with a powder-coated exterior finish.
What is the recommended mounting height?
The supplied specifications list approximately 3–5 meters, or about 9.8–16.4 feet.
How far apart should the lights be installed?
The supplied specifications list approximately 10–15 meters, or about 33–49 feet. Final spacing should be adjusted for the property, desired brightness and mounting height.
How long does the solar panel take to charge?
The listed charging time is approximately 6–7 hours when sufficient strong sunlight is available.
How long does the light operate at night?
The supplied specification lists approximately 10–12 hours or more after adequate charging. Actual runtime can vary with weather, battery condition, season and sunlight.
What battery does the light use?
The supplied specification lists a ternary lithium-ion battery and identifies LiFePO4 as an optional battery configuration.
Is the light waterproof?
The supplied specification lists an IP65 outdoor-protection rating.
What color temperatures are available?
The supplied information lists 2700K, 3000K, 4100K, 5000K and 5700K options. Availability may depend on the selected configuration.
What is the beam angle?
The supplied product information lists a wide 120-degree beam angle.
Does the fixture require normal electrical wiring?
The light is designed as a solar-powered post-top system, helping eliminate the need to connect conventional utility power directly to the fixture.
What warranty is available?
The supplied product information references 3-year and 5-year warranty configurations. Confirm the warranty listed with the specific product option purchased.
Can Outdoor Solar Outlet help with a larger project?
Yes. For larger pathways, communities, parks and commercial projects, send us your dimensions, pole height, ZIP code, photos or site plan so we can help narrow down fixture quantity and placement.
12000W Series Solar Post Top
2400 Lumens Listed Output
Die-Cast Aluminum Outdoor Housing
IP65 Weather Protection
120° Beam Wide Coverage
